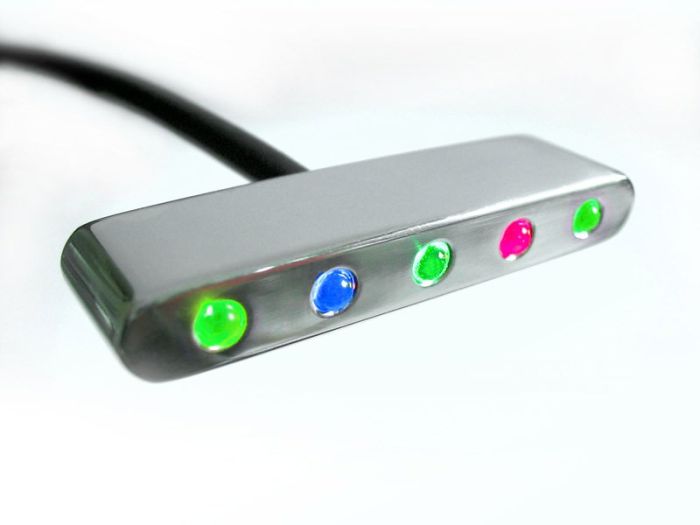

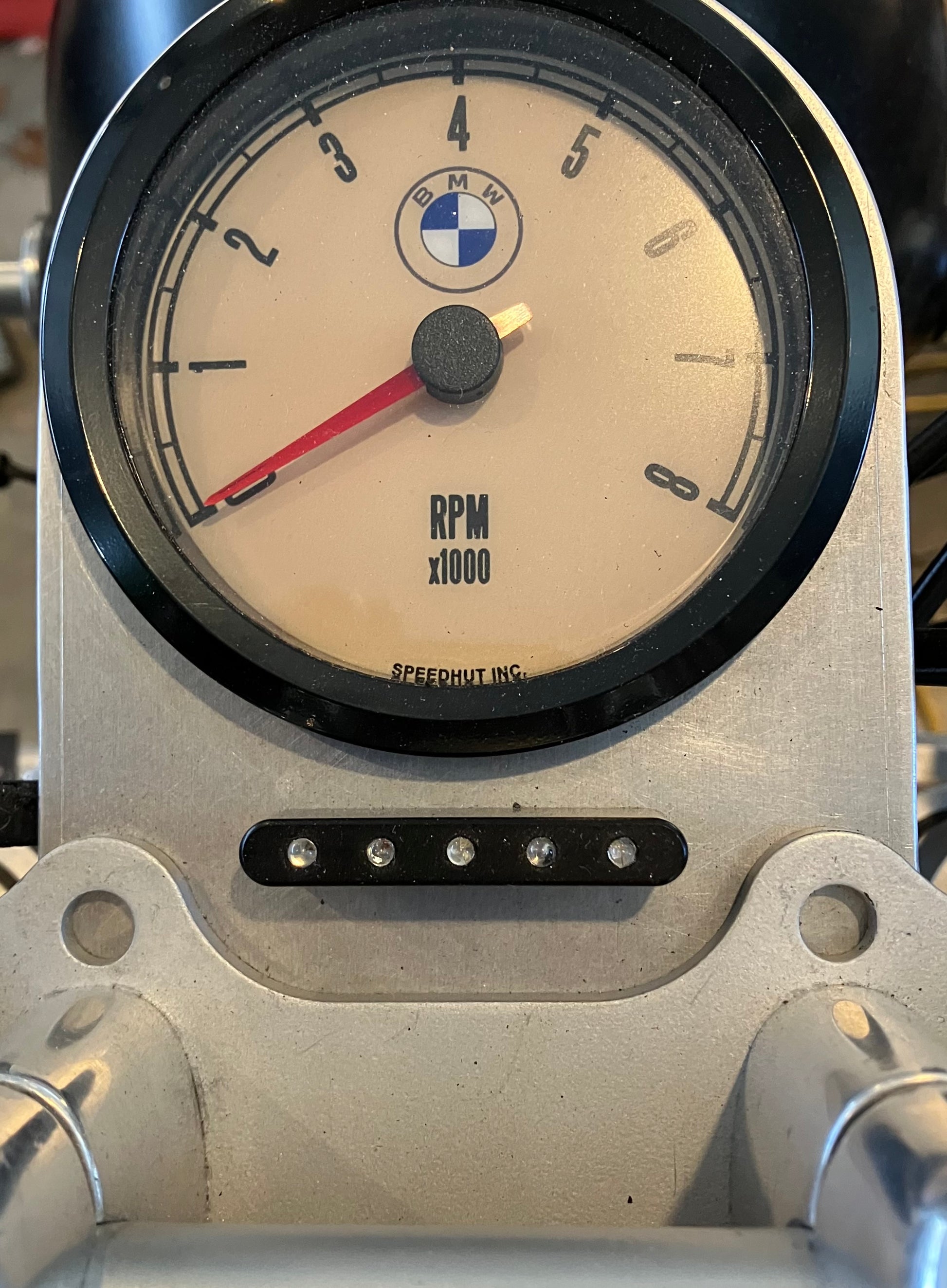

The motosign mini is a compact indicator light array that can be used with the motoscope mini digital instrument kit or as a stand-alone array for a custom installation. Incorporates 5 indicator lights that can be used for neutral, oil pressure, high-beam, right turn and left turn. As an option, one of the turn signal indicators can be wired as a warning light with the remaining turn signal light indicating both left and right signal activation.

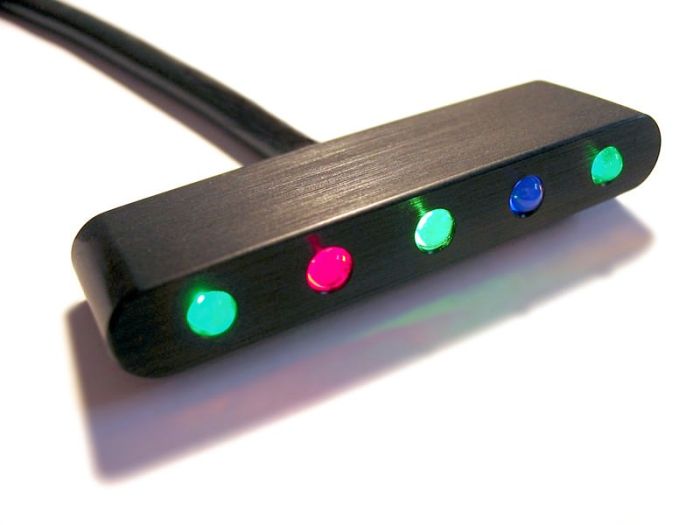

Please specify black or polished silver aluminum housing when ordering.
If using one turn signal light to activate with either the left or right turn signal be sure to order the turn signal diode kit.

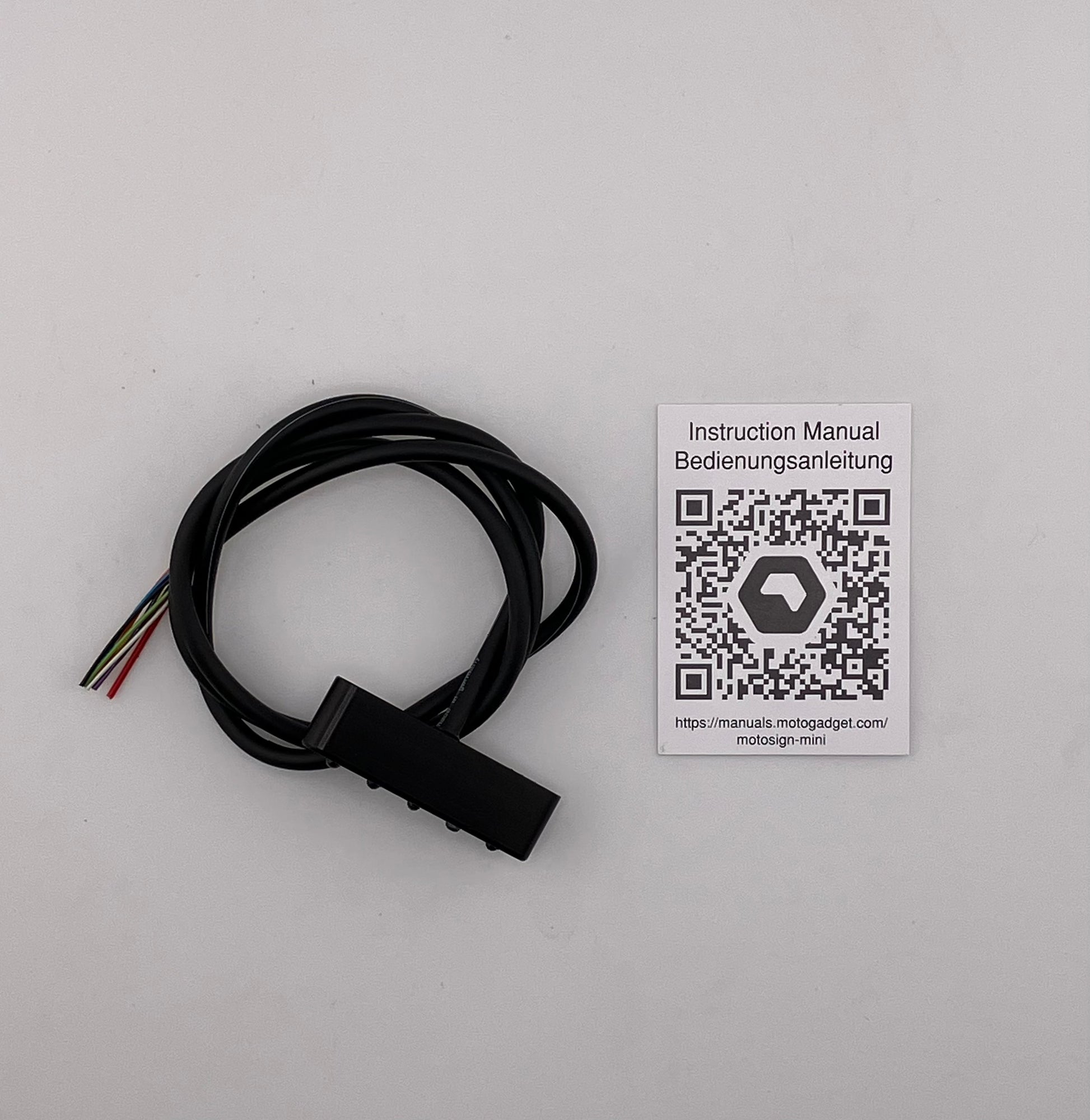

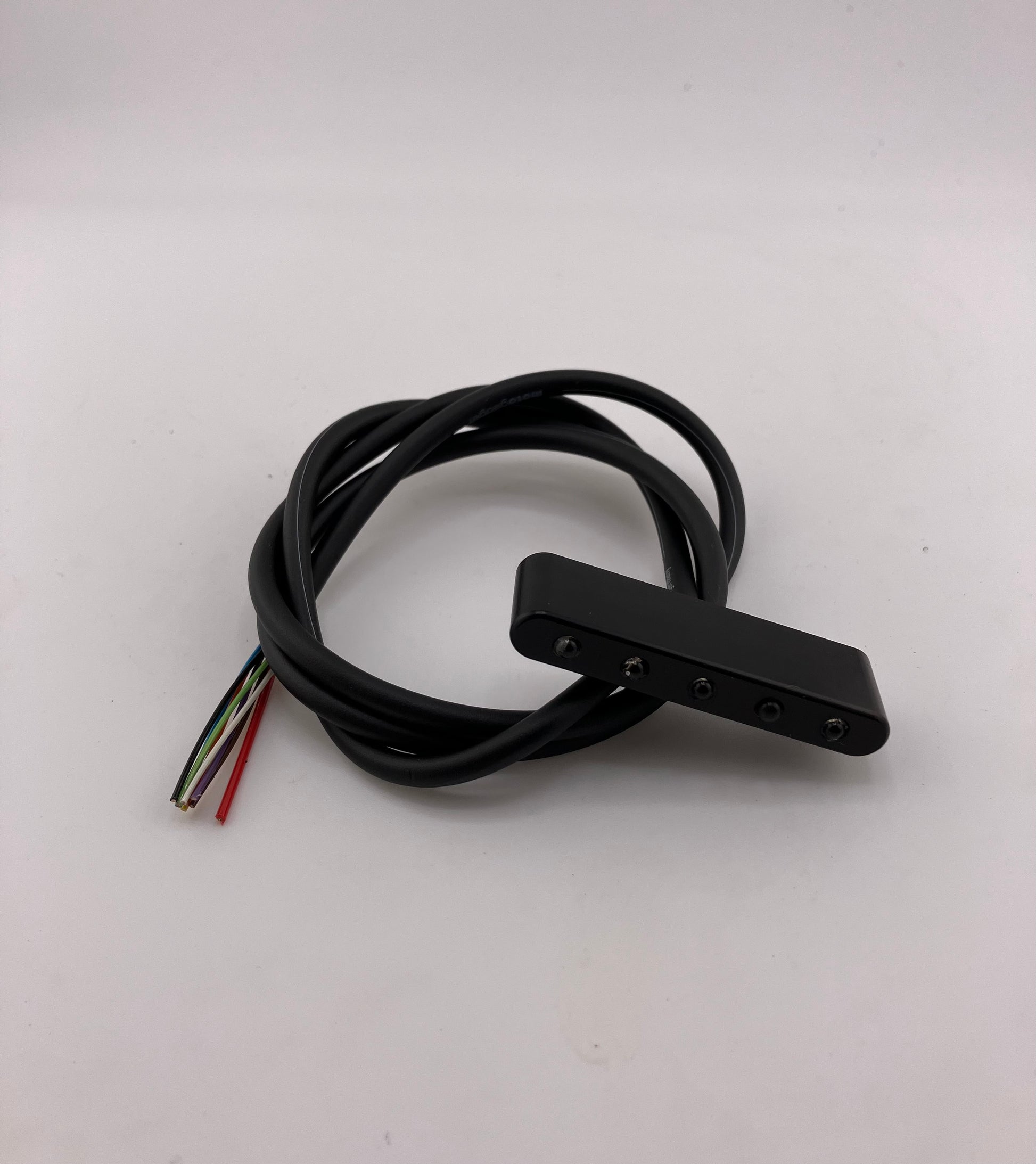

Dimensions: Length 46mm, width 7mm, height 13 mm. The length of the connecting cable is approx. 50 cm (20")
Mount using two tapped M3 holes on the rear of the display. Mounting screws not included.
The device is already equipped with integrated multiplier resistors. LED colors: 2 x turn signal lights (indicators left/right or 1 x indicators/ 1 x warning light) 1 x green (idle gear) 1 x blue (high beam) 1 x red (warning light)
