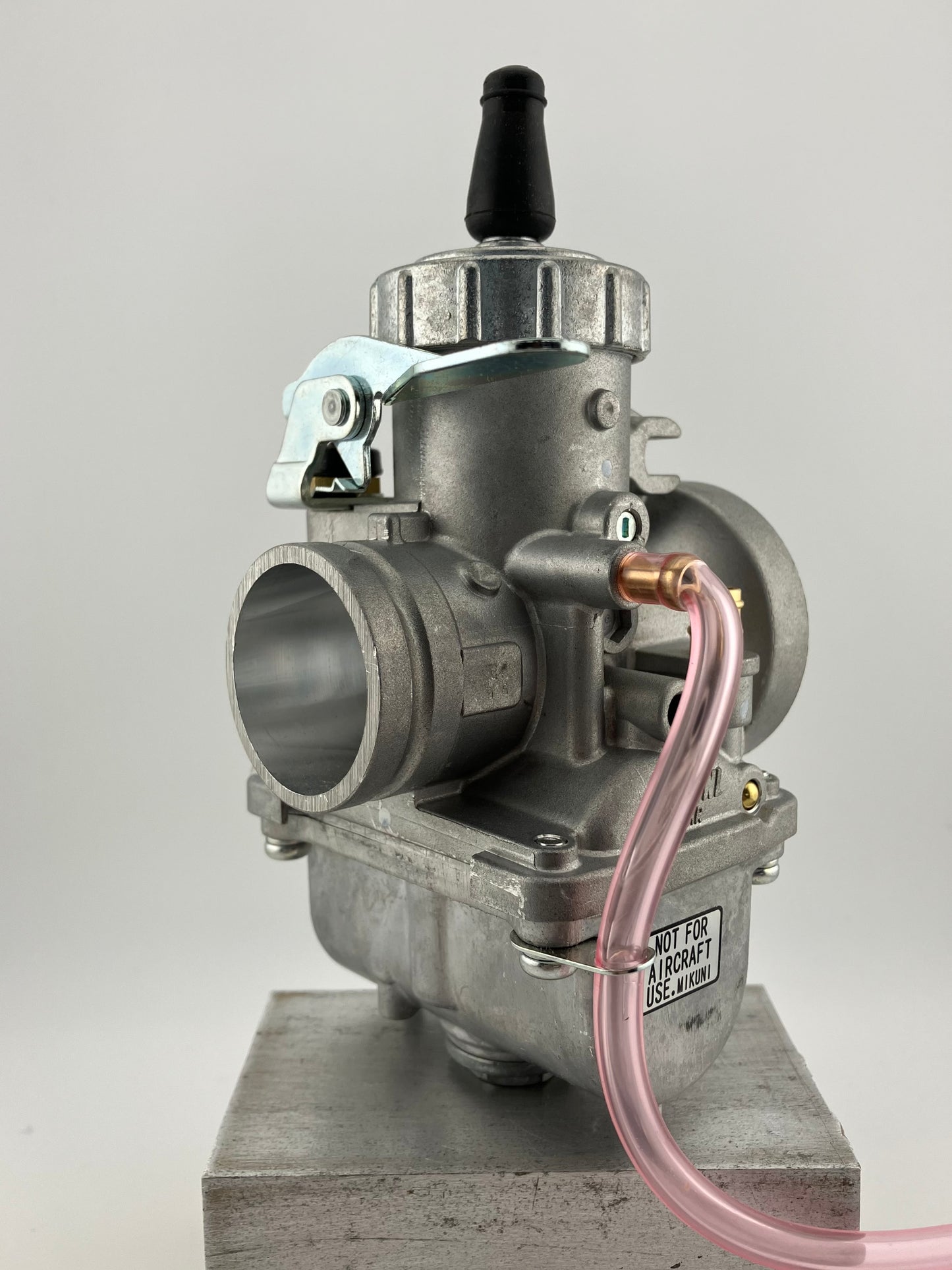

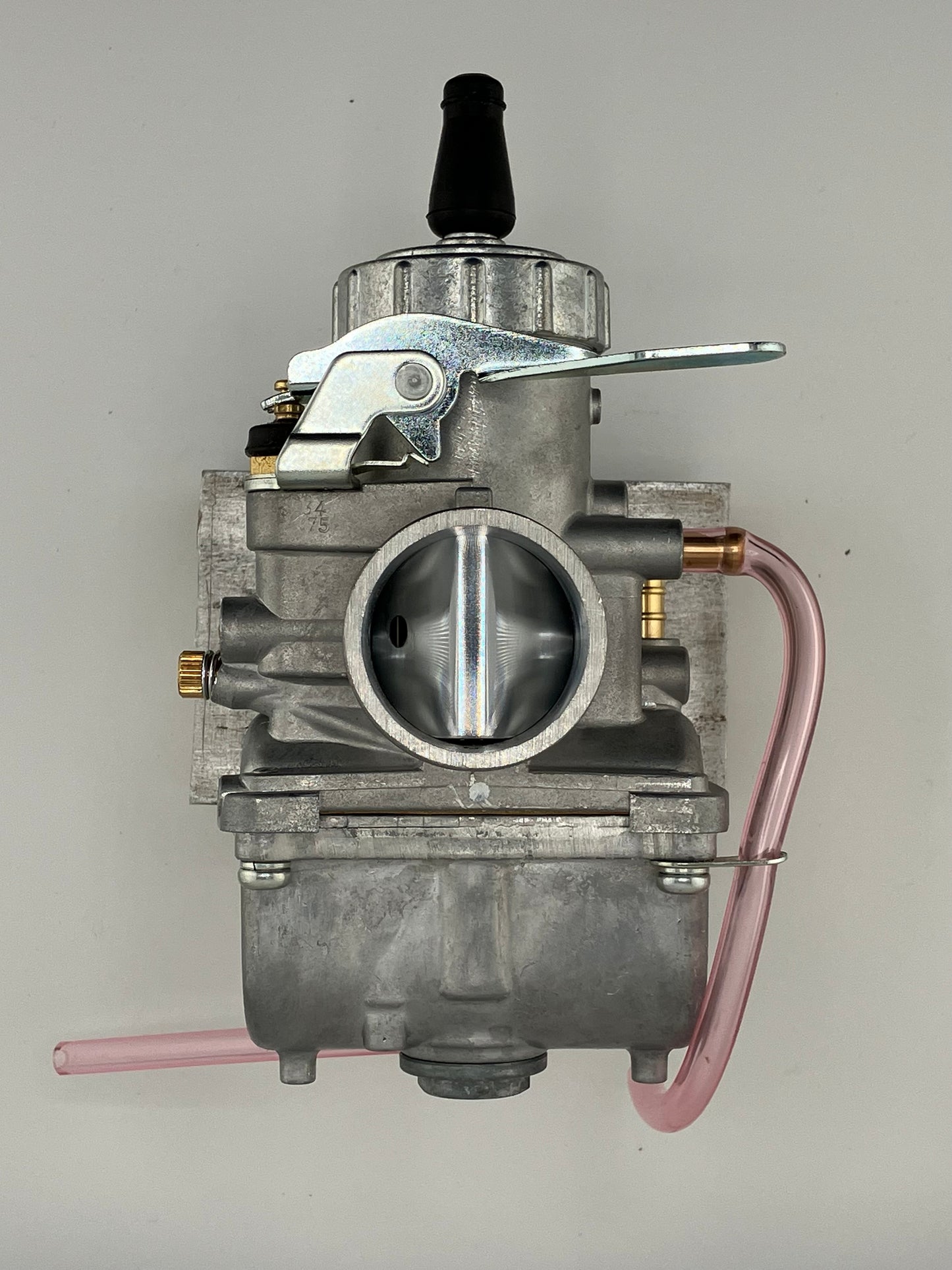

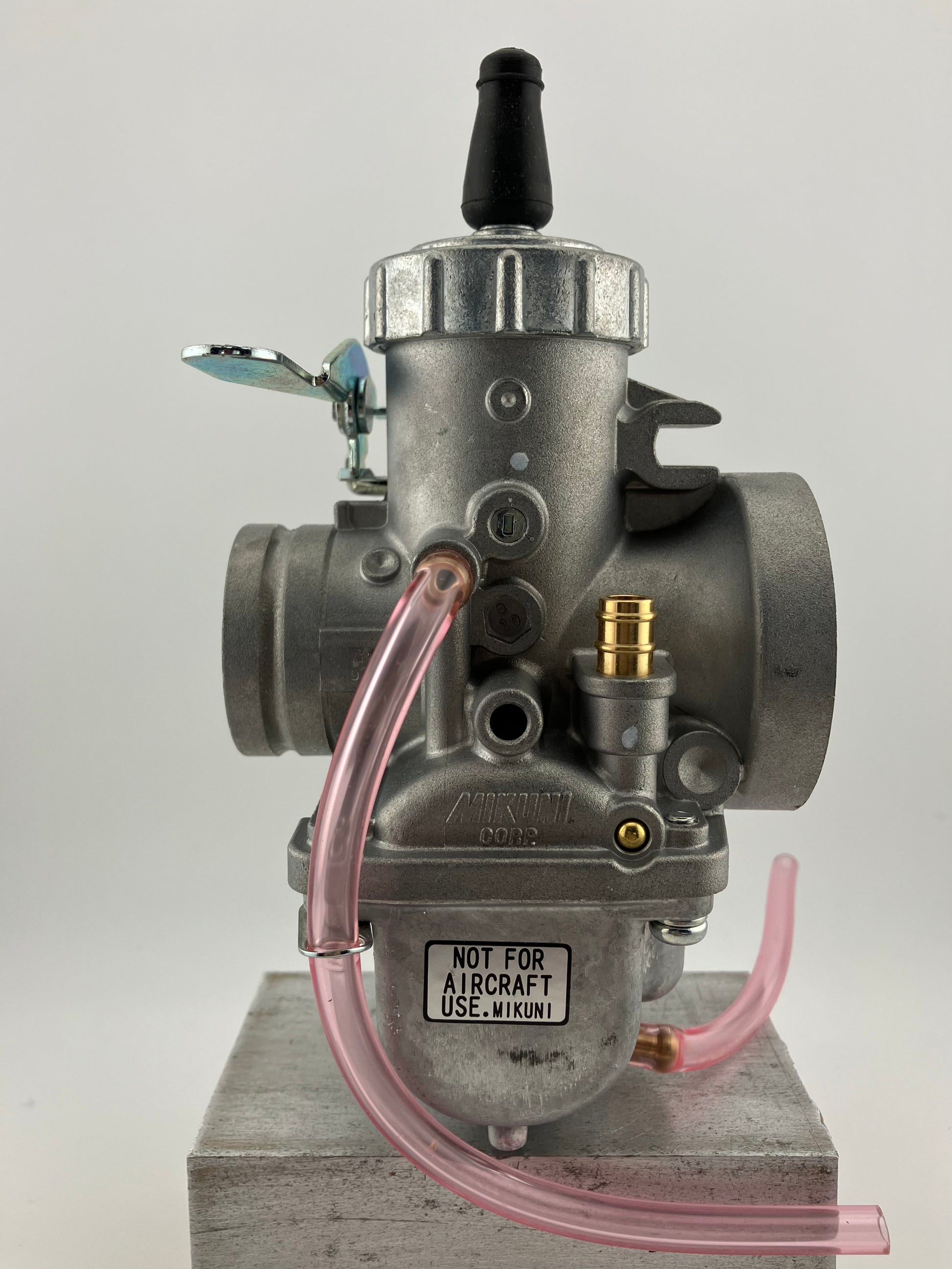

Mikuni VM34-275 round-slide carburetor, RIGHT side idle adjustment

Mikuni VM34-275 round-slide carburetor, 34mm bore, RIGHT side idle adjustment screw, spigot mount.

Stock jetting: main jet 260, pilot jet 35, needle jet 159 Q-2, jet needle 6DH4, throttle cutaway 2.5, air jet 2.0, idle screw position RIGHT, air screw position also on the right.

The VM34 is available with either left or right side idle adjustment screws which makes it very easy to use on your parallel twin or airhead.  Pairs with the VM34-168 with LEFT side idle adjustment screw for a set.

VM34 dimensions: A=40mm, B=93mm, C=137mm, D=58mm.
