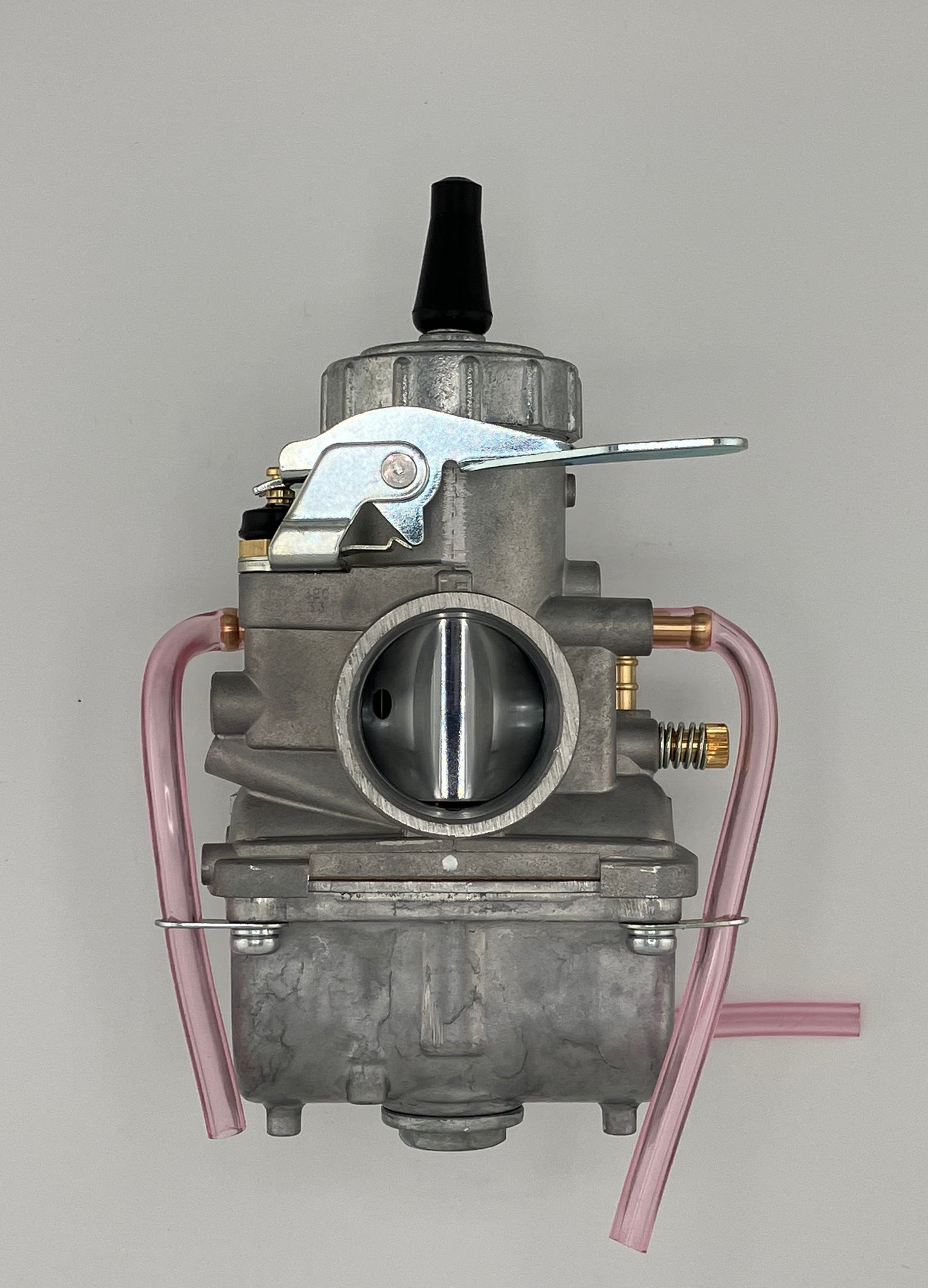

Mikuni VM-32 round-slide carburetor, LEFT side idle adjustment

Mikuni VM-32 round-slide carburetor, 32mm bore, LEFT side idle adjustment screw, spigot mount.

Stock jetting: main jet 200, pilot jet 35, needle jet 159 Q-6, jet needle 6DP17, throttle cutaway 3.0, air jet 2.0, idle screw position LEFT, air screw position right.

The VM-32 is available with either left or right side idle adjustment screws which makes it very easy to use on your parallel twin or airhead.  Pairs with the VM-32 with RIGHT side idle adjustment screw for a set.

VM32 dimensions: A=40mm, B=102mm, C=142mm, D=58mm.
